1987—2016年雀儿山冰川变化及其对气候变化的响应

欧健滨, 许刘兵, 蒲焘

Glacier change and its response to climate change in the Que’er Mountains， 1987—2016

Jianbin OU, Liubing XU, Tao PU

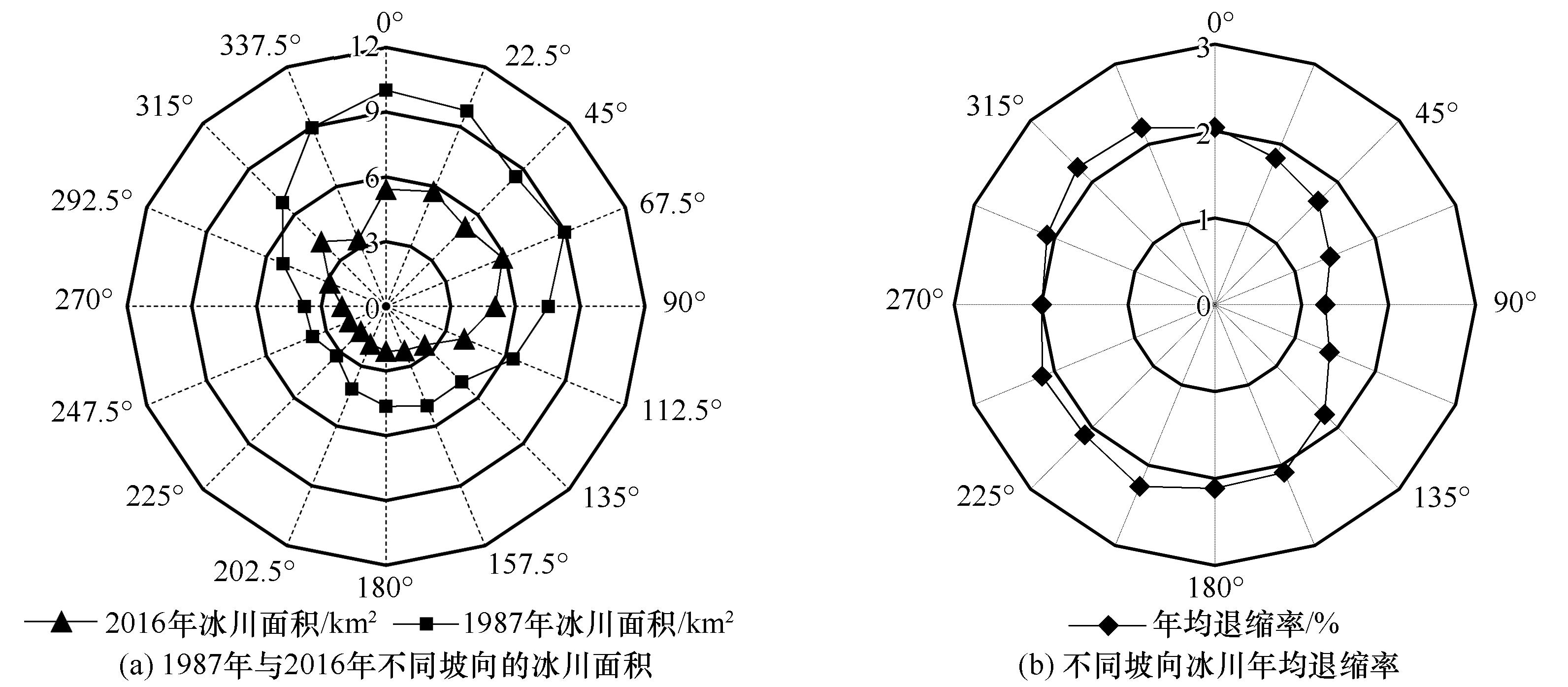

图8 冰川变化坡向特征

Fig.8 Rose graphs showing glacierized areas of various aspects in 1987 and 2016 （a）， and rose graphs showing annual mean shrinkage ratio of glacierized area from 1987 to 2016 （b）
