青藏高原典型大陆性冰川表面消融期溶解性有机质演化特征分析
冯琳,徐建中,翟立翔

The evolution characteristics of dissolved organic matter in cryoconite during ablation season on the surface of a typical continental glacier of Tibetan Plateau: a case study at Laohugou Glacier No. 12
Lin FENG,Jianzhong XU,Lixiang ZHAI

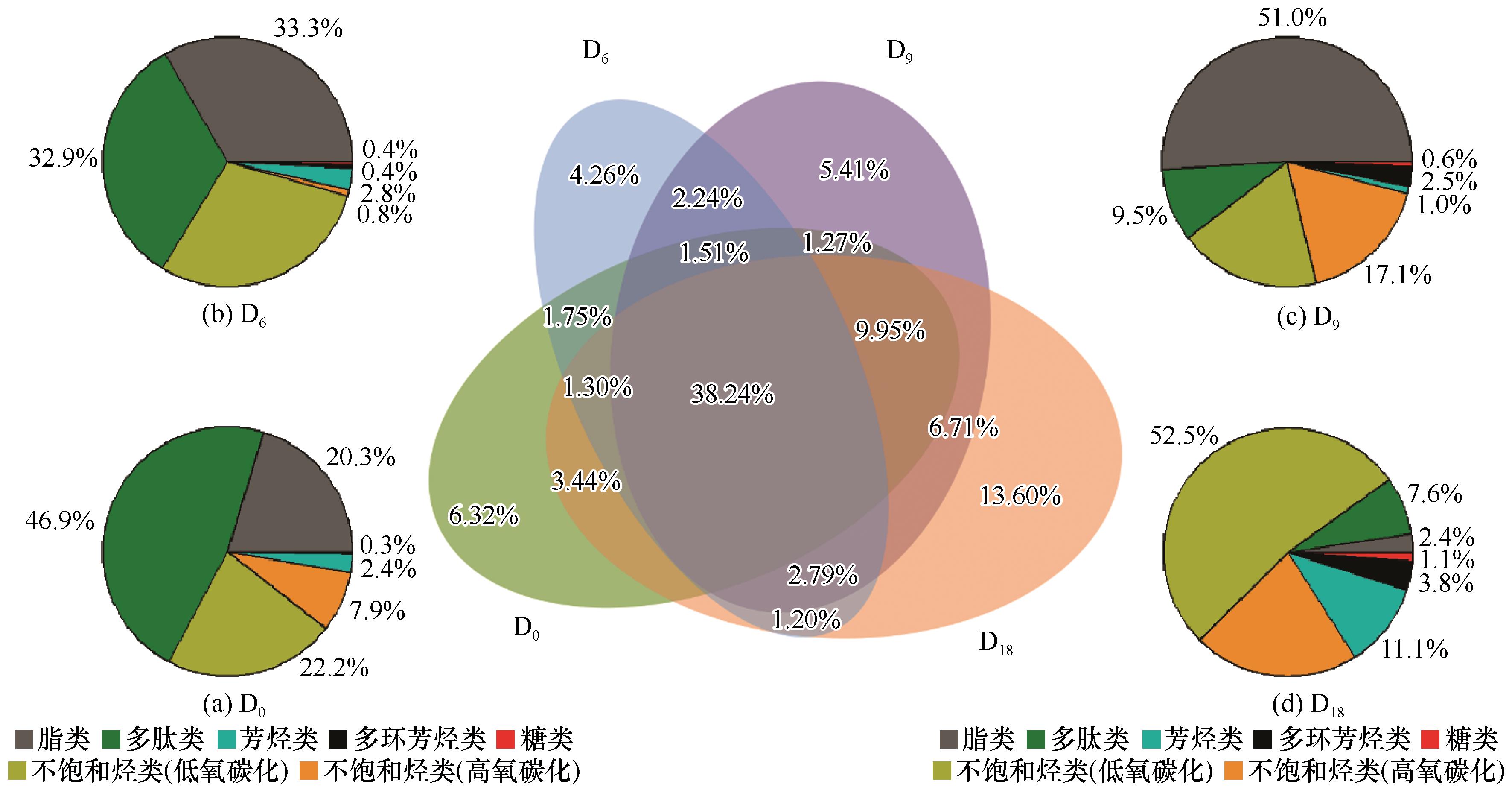

图5 不同培养时间冰尘水样中共有DOM分子和特有DOM分子百分含量及其分子组成分析
Fig.5 The numbers within the Four-way Venn diagram are the percentage of overlapped component in different incubation time and unique component in each category. The relative contributions of molecular formulas assigned to each defined compound class are shown in unique components in the four pie charts i.e. D0 (a), D6 (b), D9 (c) and D18 (d)
