天山夏特河流域晚第四纪冰川沉积序列与地貌演化

doi:10.7522/j.issn.1000-0240.2021.0016

摘要/Abstract

摘要：

夏特河源于天山最大现代冰川作用中心托木尔—汗腾格里峰的东北坡，流域内保存有形态较为清晰的四套冰川沉积。这些地形记录了夏特河流域的古冰川变化，对它们进行研究可获得该地晚第四纪以来的冰川时空演化规律。在第三套冰碛夹层中的砂质透镜体里采集了5个OSL年代学样品，应用单片再生（SAR）测年技术测得它们的年龄为（13.3±0.8）~（20.1±1.3） ka。基于测年结果、各套冰碛距现代冰川的远近、冰碛垄的完整程度、冰碛物的风化胶结状况及接触关系，并参阅托木尔—汗腾格里峰南坡与东南坡以及东、中、西段天山其他流域的年代学资料，可初步得出：第一套和第二套冰碛分别沉积于小冰期和新冰期；第三套冰碛形成于末次盛冰期及随后的冰消期，可对应于海洋氧同位素阶段（MIS） 2；保存在河口的第四套冰川沉积及与其相关联的宽阔且长达数十千米的“U”形谷共同指示，它应形成于冰川规模较大的倒数第二次冰期，时间上可对应于MIS 6。

关键词: OSL测年, 晚第四纪, 托木尔峰地区, 天山

Abstract:

Xiate River valley originates on the northeastern slope of Tumur-Hantengri Peak， the largest center of modern glaciation in the Tianshan Mountains， Central Asia. Four sets of glacial deposits are well preserved in this drainage. Dating these landforms allows for reconstruction of the spatial and temporal variations of glaciers in this valley. Five glaciofluvial samples （sand lenses sandwiched within the third moraine complex） were dated using optically stimulated luminescence with a single aliquot regenerative-dose protocol. The ages ［（13.3±0.8）~（20.1±1.3） ka］ show general agreement with the geological setting and field investigations. Based on the ages， geomorphic and stratigraphic investigation as well as the Quaternary glacial sequence in the adjoining valleys and available literatures of the whole Tianshan Mountains and western China （west of 105° E）， we conclude that the first and second sets of moraines were formed during the Little Ice Age （the large glacial advances that occurred during cold periods since the 16th century） and Neoglaciation （glacial advances during the last 3~4 ka）， respectively. The OSL ages demonstrate that the third moraine complex was deposited during the late period of the Last Glaciation， corresponding to marine oxygen isotope stage （MIS） 2. The deposits at the mouth of the Xiate River， the well-developed glacial trough indicate that a large compound valley glacier developed in this drainage， predate the Last Glacial Cycle. It is reasonable to infer that the fourth set of glacial complex was formed during MIS 6 glaciation. Since then， a pattern of restricted glaciations occurred after Penultimate Glacial Cycle in this valley and in the whole Tianshan Mountains.

Key words: OSL dating, late Quaternary, Tumur Peak area, Tianshan Mountains

中图分类号:

P931.4

刘瑞连,赵井东,殷秀峰. 天山夏特河流域晚第四纪冰川沉积序列与地貌演化[J]. 冰川冻土, 2021, 43(3): 747-755.

Ruilian LIU,Jingdong ZHAO,Xiufeng YIN. Late Quaternary glacial sequence and landform evolution in the Xiate River valley， Tianshan Mountains， China[J]. Journal of Glaciology and Geocryology, 2021, 43(3): 747-755.

图/表 7

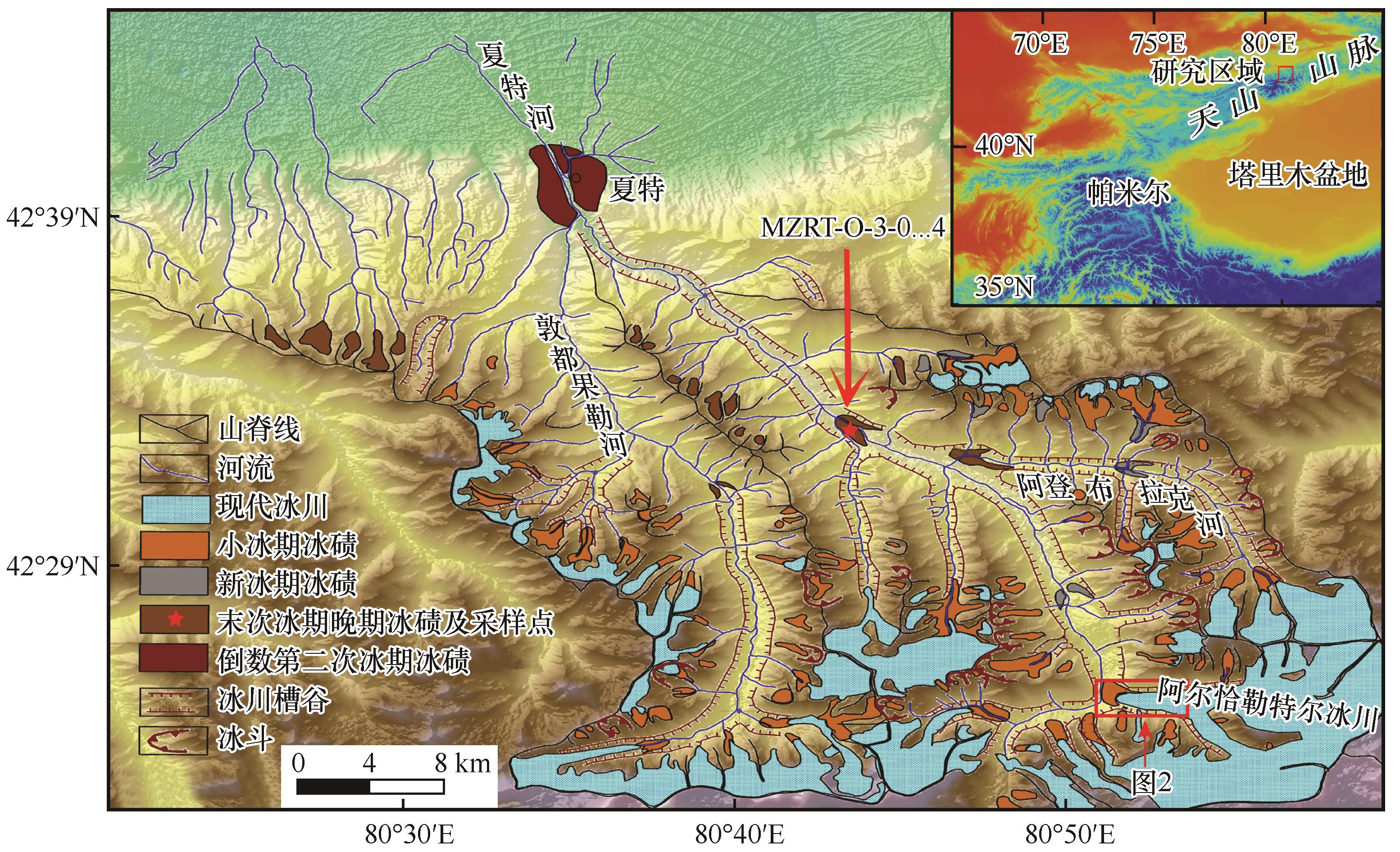

图1

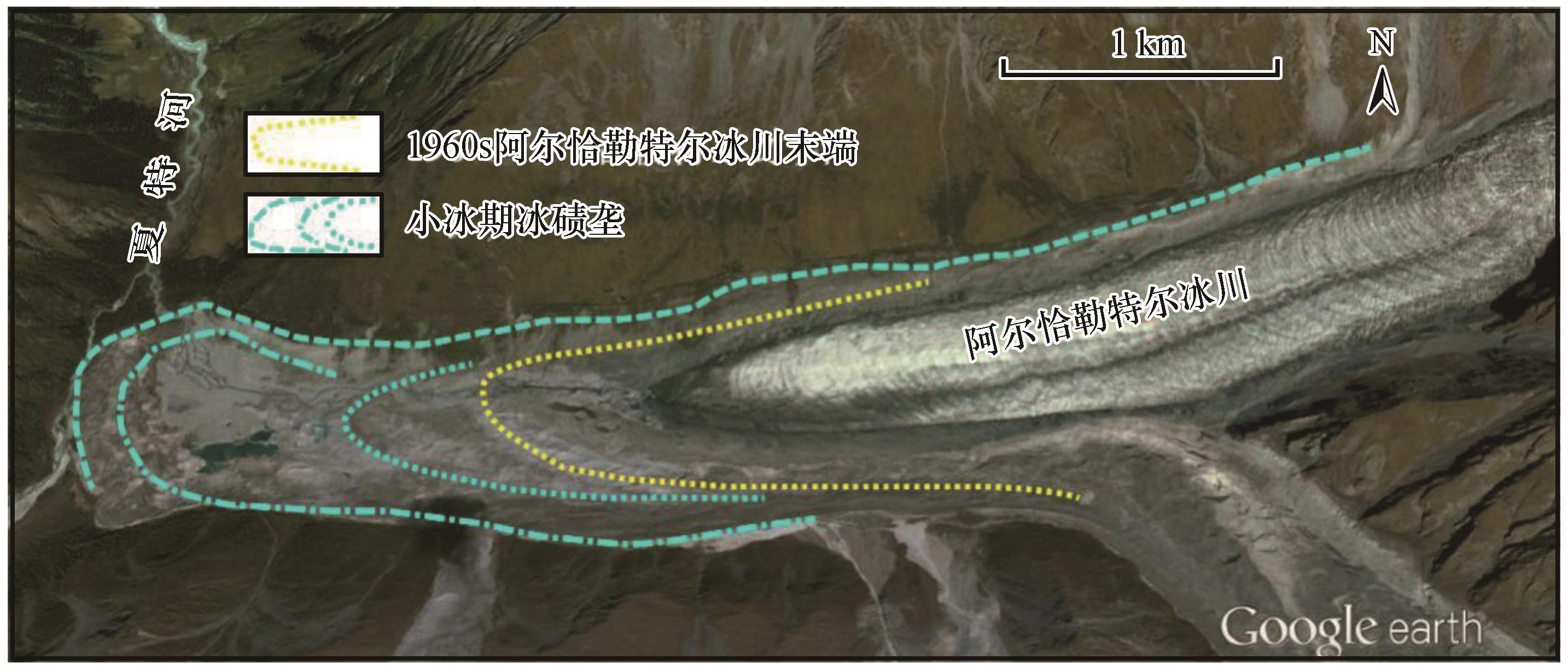

图2

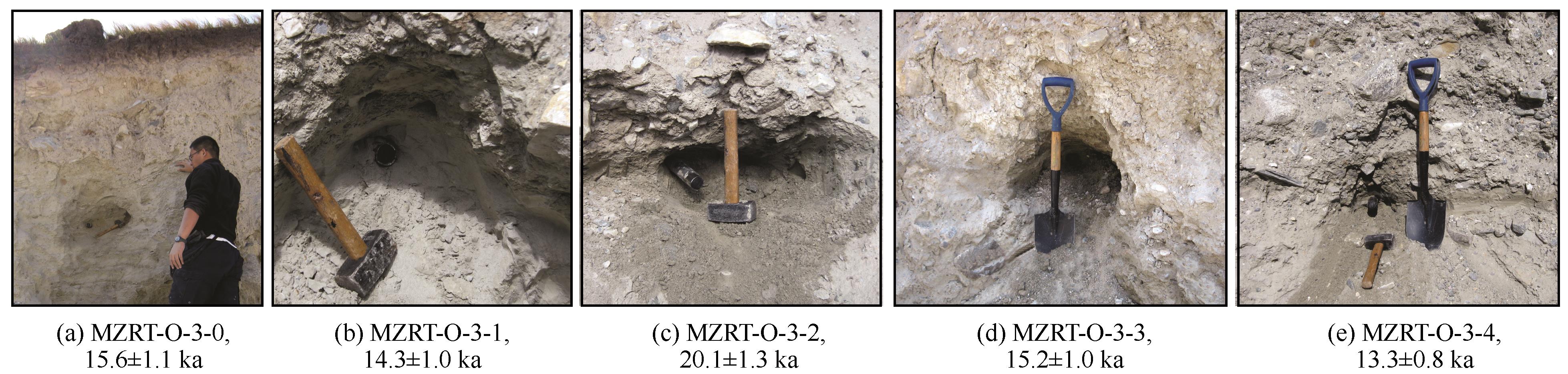

图3

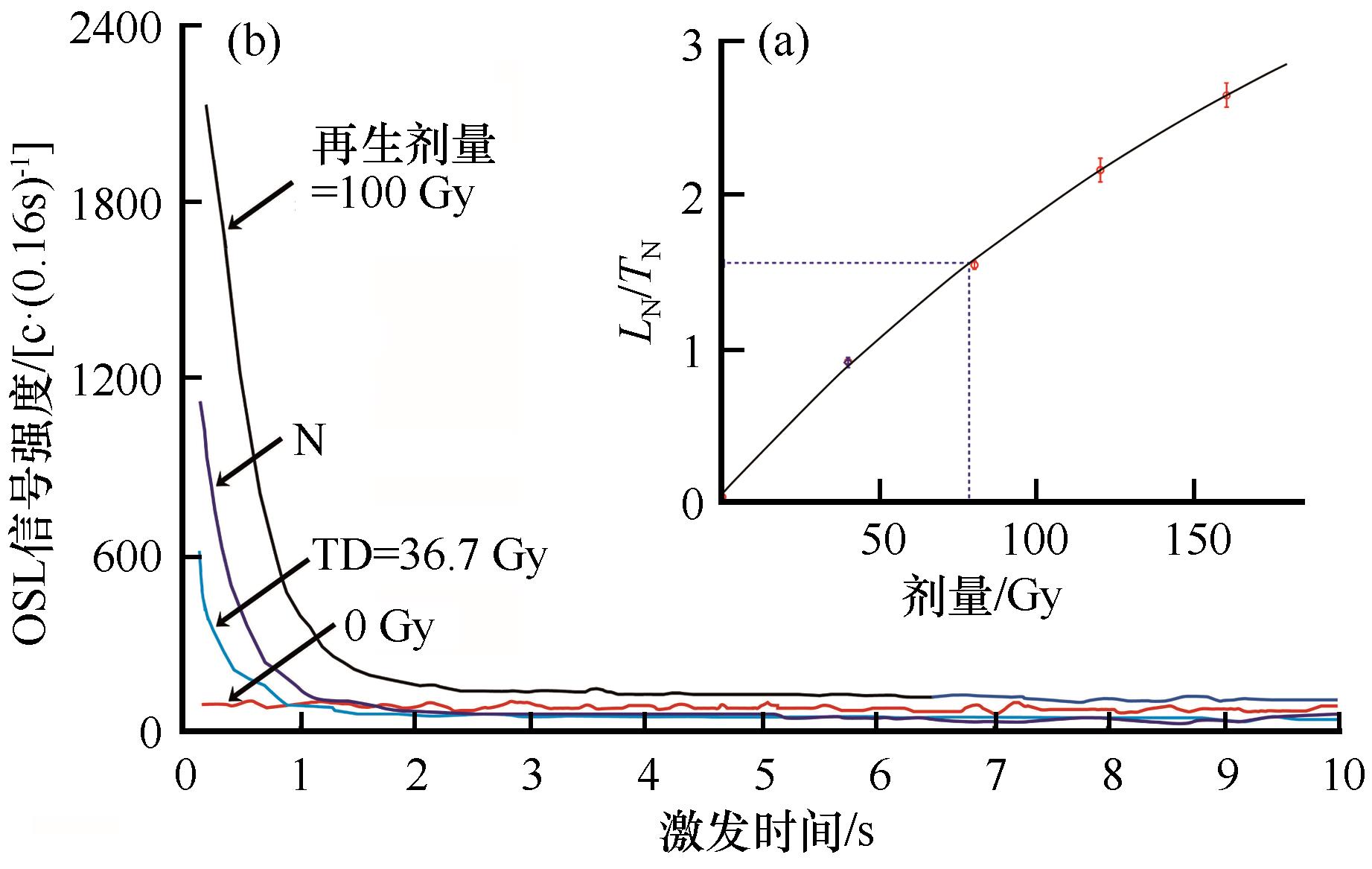

图4

表1

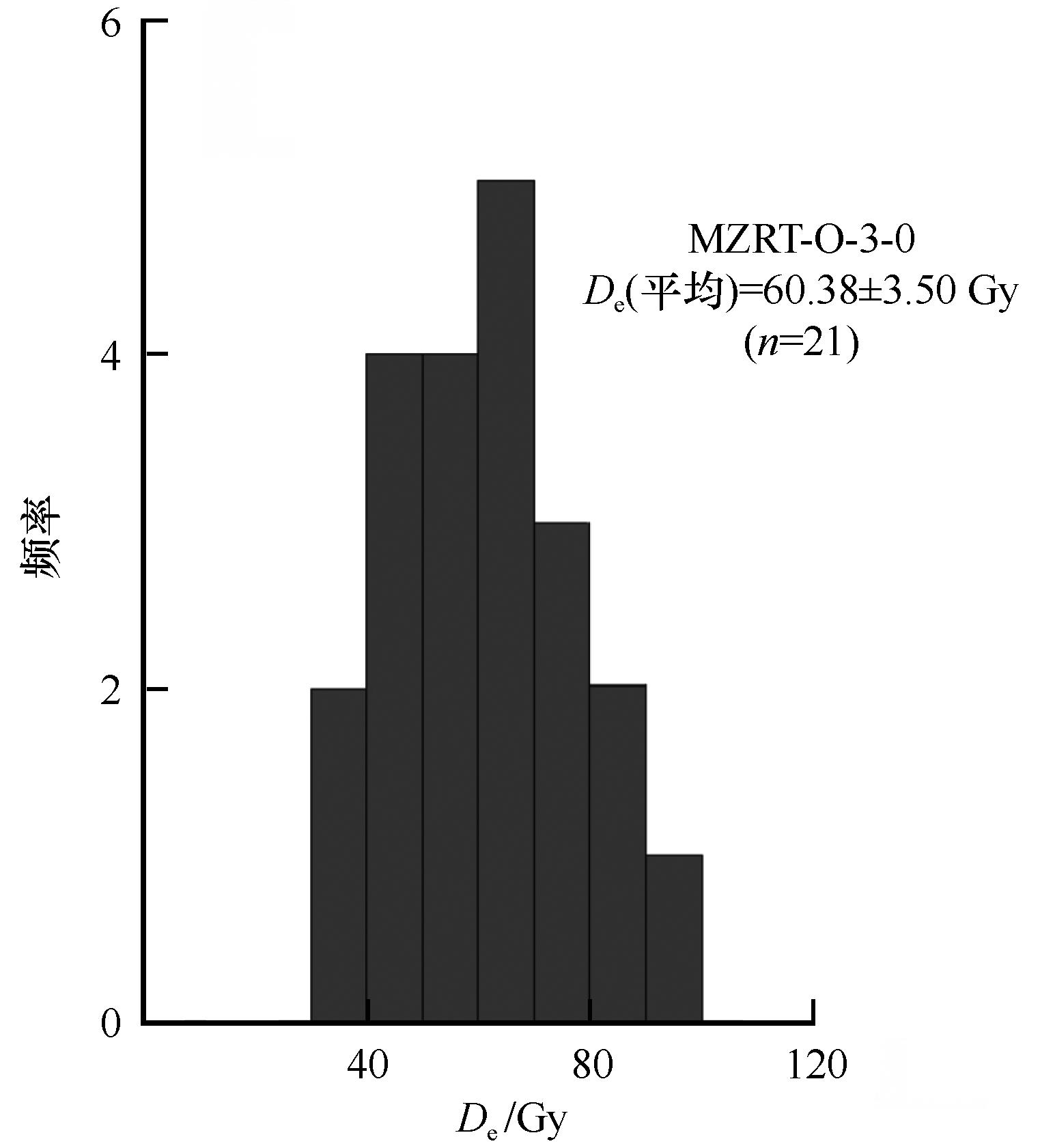

图5

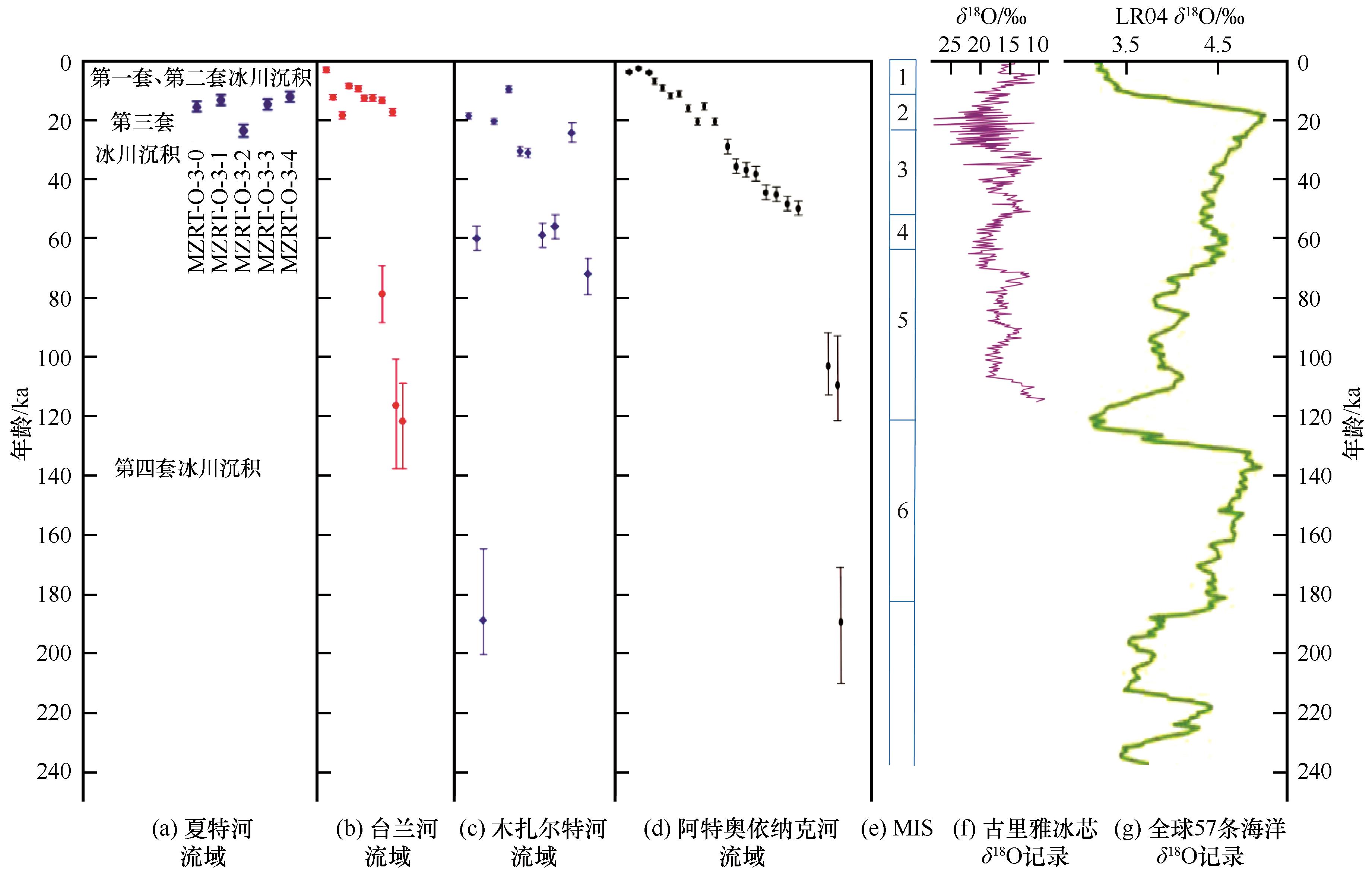

图6

参考文献 56

1	Shi Yafeng， Huang Maohuan， Yao Tandong， et al. Glaciers and their environments in China： the present， past and future［M］. Beijing： Science Press， 2000.
	施雅风，黄茂桓，姚檀栋，等. 中国冰川与环境：现在、过去和未来［M］. 北京：科学出版社， 2000.
2	Bennett M R， Glasser N F. Glacial geology： ice sheet and landforms［M］. 2nd ed. Oxford， UK： Wiley， 2009.
3	Benn D I， Evans D J A. Glacier and glaciation［M］. 2nd ed. London： Hodder Education， 2010.
4	Ehlers J， Ehlers J， Gibbard P L， et al. Quaternary glaciations-extent and chronology： a closer look［M］. Oxford， UK： Elsevier， 2011.
5	Shi Yafeng， Cui Zhijiu， Su Zhen. The Quaternary glaciations and environmental variations in China［M］. Shijiazhuang： Hebei Science and Technology Publishing House， 2006.
	施雅风，崔之久，苏珍. 中国第四纪冰川与环境变化［M］. 石家庄：河北科学技术出版社， 2006.
6	Shi Yafeng， Zhao Jingdong， Wang Jie. New understanding of Quaternary glaciations in China［M］. Shanghai： Shanghai Popular Science Press， 2011.
	施雅风，赵井东，王杰. 中国第四纪冰川新论［M］. 上海：上海科学普及出版社， 2011.
7	Owen L A， Dortch J M. Nature and timing of Quaternary glaciation in the Himalayan-Tibetan orogen［J］. Quaternary Science Reviews， 2014， 88： 14-54.
8	Murari M K， Owen L A， Dortch J M， et al. Timing and climatic drivers for glaciation across monsoon-influenced regions of the Himalayan-Tibetan orogen［J］. Quaternary Science Reviews， 2014， 88： 159-182.
9	Yi Chaolu， Jiao Keqin， Liu Kexin， et al. ESR dating of the sediments of the Last Glaciation at the source area of the Urumqi River， Tian Shan Mountains， China［J］. Quaternary International， 2002， 97： 141-146.
10	Zhou Shangzhe， Jiao Keqin， Zhao Jingdong， et al. The geomorphology of Urümqi River valley and the uplift of Tianshan Mountain in the Quaternary［J］. Science in China： Series D， 2002， 45： 961-968.
11	Zhao Jingdong， Zhou Shangzhe， He Yuanqing， et al. ESR dating of glacial tills and glaciations in the Urumqi River headwaters， Tianshan Mountains， China［J］. Quaternary International， 2006， 144： 61-67.
12	Zhao Jingdong， Liu Shiyin， He Yuanqing， et al. Quaternary glacial chronology of the Ateaoyinake River valley， Tianshan Mountains， China［J］. Geomorphology， 2009， 103： 276-284.
13	Zhao Jingdong， Song Yougui， King J W， et al. Glacial geomorphology and glacial history of the Muzart River valley， Tianshan Range， China［J］. Quaternary Science Reviews， 2010， 29： 1453-1463.
14	Zhao Jingdong， Wang Jie， Harbor J M， et al. Quaternary glaciations and glacial landform evolution in the Tailan River valley， Tianshan Range， China［J］. Quaternary International， 2015， 358： 2-11.
15	Zhao Jingdong， Lai Zhongping， Liu Shiyin， et al. OSL and ESR dating of glacial deposits and its implications for glacial landform evolution in the Bogeda Peak area， Tianshan Range， China［J］. Quaternary Geochronology， 2012， 10： 237-243.
16	Narama C， Kondo R， Tsukamoto S， et al. OSL dating of glacial deposits during the Last Glacial in the Terskey-Alatoo Range， Kyrgyz Republic［J］. Quaternary Geochronology， 2007， 2： 249-254.
17	Narama C， Kondo R， Tsukamoto S， et al. Timing of glacier expansion during the Last Glacial in the inner Tien Shan， Kyrgyz Republic by OSL dating［J］. Quaternary International， 2009， 199： 147-156.
18	Xianjiao Ou， Lai Zhongping， Zhou Shangzhe， et al. Optical dating of young glacial sediments from the source area of the Urumqi River in Tianshan Mountains， northwestern China［J］. Quaternary International， 2015， 358： 12-20.
19	Koppes M， Gillespie A R， Burke R M， et al. Late Quaternary glaciation in the Kyrgyz Tien Shan［J］. Quaternary Science Reviews， 2008， 28： 846-866.
20	Kong Ping， Fink D， Na Chunguang， et al. Late Quaternary glaciation of the Tianshan， Central Asia， using cosmogenic ¹⁰Be surface exposure dating［J］. Quaternary Research， 2009， 72： 229-233.
21	Li Yingkui， Liu Gengnian， Kong Ping， et al. Cosmogenic nuclide constraints on glacial chronology in the source area of the Urumqi River， Tian Shan， China［J］. Journal of Quaternary Science， 2011， 26： 297-304.
22	Li Yingkui， Liu Gengnian， Chen Yixin， et al. Timing and extent of Quaternary glaciations in the Tianger Range， eastern Tian Shan， China， investigated using ¹⁰Be surface exposure dating［J］. Quaternary Science Reviews， 2014， 98： 7-23.
23	Zech R. A late Pleistocene glacial chronology from the Kitschi-Kurumdu Valley， Tien Shan （Kyrgyzstan）， based on ¹⁰Be surface exposure dating［J］. Quaternary Research， 2012， 77： 281-288.
24	Lifton N， Beel C， Hättestrand C， et al. Constraints on the late Quaternary glacial history of the Inylchek and Sary-Dzaz valleys from in situ cosmogenic ¹⁰Be and ²⁶Al， eastern Kyrgyz Tian Shan［J］. Quaternary Science Reviews， 2014， 101： 77-90.
25	Chen Yixin， Li Yingkui， Wang Yueyan， et al. Late Quaternary glacial history of the Karlik Range， easternmost Tian Shan， derived from ¹⁰Be surface exposure and optically stimulated luminescence datings［J］. Quaternary Science Reviews， 2015， 115： 17-27.
26	Li Yanan， Li Yingkui， Harbor J， et al. Cosmogenic ¹⁰Be constraints on little ice age glacial advances in the eastern Tian Shan， China［J］. Quaternary Science Reviews， 2016， 138： 105-118.
27	Blomdin R， Stroeven A P， Harbor J M， et al. Evaluating the timing of former glacier culmination in the Tian Shan： a key step towards robust spatial correlations［J］. Quaternary Science Reviews， 2016， 153： 78-96.
28	Zhang Mei， Chen Yixin， Li Yingkui， et al. Late Quaternary glacial history of the Nalati Range， central Tian Shan， China， investigated using ¹⁰Be surface exposure dating［J］. Journal of Quaternary Science， 2016， 31： 659-670.
29	Chinese Academy of Sciences. Lanzhou Institute of Glaciology and Geocryology. Glacier inventory of China III： Tianshan Mountains （Ili River drainage basin）［M］. Beijing： Science Press， 1986： 7-18， 134-139.
	中国科学院兰州冰川冻土研究所. 中国冰川编目Ⅲ：天山山区（伊犁河流域）［M］. 北京：科学出版社， 1986： 7-18， 134-139.
30	Song Yougui， Li Chuanxiang， Zhao Jingdong， et al. A combined luminescence and radiocarbon dating study of the Ili loess， Central Asia［J］. Quaternary Geochronology， 2012， 10： 2-7.
31	Scientific Expedition Team on Mountaineering of the Chinese Academy of Sciences. Glacier and meteorology in Tumur Peak region， Tianshan Mountains［M］. Urumqi： Xinjiang People’s Publishing House， 1985： 33-43.
	中国科学院登山科学考察队. 天山托木尔峰地区冰川与气象［M］. 乌鲁木齐：新疆人民出版社， 1985： 33-43.
32	Chen Jiyang. Preliminary researches on lichenometric chronology of Holocene glacial fluctuations and on other topics in the headwater of Urumqi River， Tianshan Mountains［J］. Science in China： Series B， 1989， 32（12）： 1487-1500.
33	Xianjiao Ou， Xu Liubing， Lai Zhongping， et al. Potential of quartz OSL dating on moraine deposits from eastern Tibetan Plateau using SAR protocol［J］. Quaternary Geochronology， 2010， 5： 257-262.
34	Xianjiao Ou， Lai Zhongping， Zhou Shangzhe， et al. Timing of glacier fluctuations and trigger mechanisms in eastern Qinghai-Tibetan Plateau during the late Quaternary［J］. Quaternary Research， 2014， 81： 464-475.
35	Zhang Biao， Xianjiao Ou， Lai Zhongping. OSL ages revealing the glacier retreat in the Dangzi valley in the eastern Tibetan Plateau during the Last Glacial Maximum［J］. Quaternary Geochronology， 2012， 10： 244-249.
36	Lai Zhongping， Brückner H. Effects of feldspar contamination on equivalent dose and the shape of growth curve for OSL of silt-sized quartz extracted from Chinese loess［J］. Geochronometria， 2008， 30： 49-53.
37	Murray A S， Wintle A G. Luminescence dating of quartz using an improved single-aliquot regenerative-dose protocol［J］. Radiation Measurements， 2000， 32： 57-73.
38	Wintle A G， Murray A S. A review of quartz optically stimulated luminescence characteristics and their relevance in single-aliquot regeneration dating protocols［J］. Radiation Measurements， 2006， 41： 369-391.
39	Spencer J Q G， Robinson R A J. Dating intramontane alluvial deposits from NW Argentina using luminescence techniques： problems and potential［J］. Geomorphology， 2008， 93： 144-155.
40	Richards B W M. Luminescence dating of Quaternary sediments in the Himalaya and High Asia： a practical guide to its use and limitations for constraining the timing of glaciation［J］. Quaternary International， 2000， 65： 49-61.
41	Spencer J Q， Owen L A. Optically stimulated luminescence dating of late Quaternary glaciogenic sediments in the upper Hunza valley： validating the timing of glaciation and assessing dating methods［J］. Quaternary Science Reviews， 2004， 23： 175-191.
42	Bøe A G， Murray A， Dahl S O. Resetting of sediments mobilised by the LGM ice-sheet in southern Norway［J］. Quaternary Geochronology， 2007， 2： 222-228.
43	Roberts H M， Duller G A T. Standardised growth curves for optical dating of sediment using multiple-grain aliquots［J］. Radiation Measurements， 2004， 38： 241-252.
44	Lai Zhongping. Testing the use of an OSL standardised growth curve （SGC） for De determination on quartz from the Chinese Loess Plateau［J］. Radiation Measurements， 2006， 41： 9-16.
45	Lai Zhongping， Brückner H， Fülling A， et al. Existence of a common growth curve for silt-sized quartz OSL of loess from different continents［J］. Radiation Measurements， 2007， 42： 1432-1440.
46	Prescott J R， Hutton J T. Cosmic ray contributions to dose rates for luminescence and ESR dating： large depths and long-term time variations［J］. Radiation Measurements， 1994， 23： 497-500.
47	Fuchs M， Owen L A. Luminescence dating of glacial and associated sediments： review， recommendations and future directions［J］. Boreas， 2008， 37： 636-659.
48	Thrasher I M， Mauz B， Chiverrell R C， et al. Luminescence dating of glaciofluvial deposits： a review［J］. Earth-Science Reviews， 2009， 97： 133-146.
49	Rhodes E J. Optically stimulated luminescence dating of sediments over the past 200000 years［J］. Annual Review of Earth and Planetary Sciences， 2011， 39： 461-88.
50	Zeng Lanhua， Xianjiao Ou， Chen Rong， et al. OSL dating on glacial sediments of the Last Glacial in headwater of Urumqi River， Tianshan Mountains［J］. Journal of Glaciology and Geocryology， 2019， 41（4）： 761-769.
	曾兰华，欧先交，陈嵘，等. 天山乌鲁木齐河源末次冰期冰川沉积光释光测年［J］. 冰川冻土， 2019， 41（4）： 761-769.
51	Duller G A T. Luminescence dating of quaternary sediments： recent developments［J］. Journal of Quaternary Science， 2004， 19： 183-192.
52	Fuchs M， Woda C， Bürkert A. Chronostratigraphy of a sedimentary record from the Hajar mountain range in north Oman： implications for optical dating of insufficiently bleached sediments［J］. Quaternary Geochronology， 2007， 2： 202-207.
53	Yi Chaolu， Liu Kexin， Cui Zhijiu， et al. AMS radiocarbon dating of late Quaternary glacial landforms， source of the Urumqi River， Tien Shan： a pilot study of ¹⁴C dating on inorganic carbon［J］. Quaternary International， 2004， 121： 99-107.
54	Yao Tandong， Thompson L G， Shi Yafeng. Climate variation since the last interglaciation recorded in the Guliya ice core［J］. Science in China： Series D， 1997， 40： 662-668.
55	Lisiecki L E， Raymo M E. A Pliocene-Pleistocene stack of 57 globally distributed benthic δ¹⁸O records［J］. Paleoceanography， 2005， 20（1）： 1-17.
56	Zhao Jingdong， Shi Yafeng， Wang Jie. Comparison between Quaternary glaciations in China and the Marine Oxygen Isotope Stage （MIS）： an improved schema［J］. Acta Geographica Sinica， 2011， 66（7）： 867-884.
	赵井东，施雅风，王杰. 中国第四纪冰川演化序列与MIS对比研究的新进展［J］. 地理学报， 2011， 66（7）： 867-884.

样品编号	样品的位置信息				U/10^-6	Th/10^-6	K/%	含水量/%	D_e/Gy	年龄/ka
样品编号	经度/E	纬度/N	海拔/m	深度/m	U/10^-6	Th/10^-6	K/%	含水量/%	D_e/Gy	年龄/ka
MZRT-O-3-0	80°43′33.6″	42°32′35.6″	2 346±8.1	1.9	2.80±0.11	12.9±0.35	2.09±0.06	8.23	60.38±3.50	15.6±1.1
MZRT-O-3-1	80°43′34.3″	42°32′34.4″	2 368±8.2	2.2	2.66±0.10	15.2±0.41	2.20±0.06	8.95	58.03±3.17	14.3±1.0
MZRT-O-3-2	80°43′34.3″	42°32′35.5″	2 371±16.8	2.5	2.28±0.10	11.9±0.33	2.00±0.06	4.54	74.52±3.90	20.1±1.3
MZRT-O-3-3	80°43′14.1″	42°32′47.2″	2 332±6.9	3.7	2.03±0.09	9.3±0.28	1.56±0.05	8.68	43.08±1.99	15.2±1.0
MZRT-O-3-4	80°43′02.6″	42°32′53.7″	2 301±30.9	6.5	3.56±0.12	12.1±0.34	2.13±0.06	7.91	52.61±2.29	13.3±0.8
